AUTO TURNTABLE TL Series
Product code: SASUKI TURNTABLE TL
+ PRODUCT DESCRIPTION:

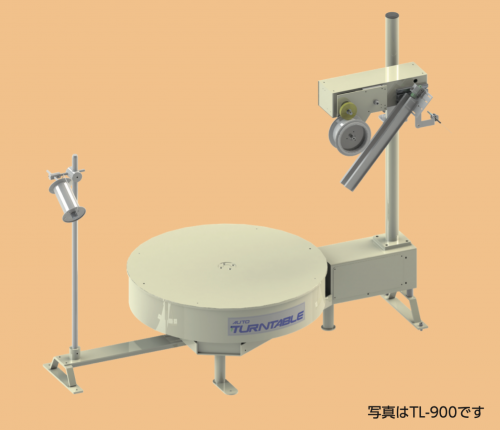

AUTO TURNTABLE TL Series
TL-700 / TL-900 / TL-1100
Smooth feeding is possible without backward tensile force.
Most suitable for stamping ultra-precision parts.
Can be installed close to the press machine, saving space.
Easy to adjust and has good operability.
Features
Pre-stacked coils of materials on a pallet can be simply load onto the turntable.
Pre-stacked coils of materials can be set at once, effective for improving setup efficiency and saving space.
Analogue sensor constantly detects material loop, follows the line speed with continuously variable speed.
Product quality is stable because no backward tensile force is applied to the material.
Specifications
| Item/Model | TL-700 | TL-900 | TL-1100 | |
|---|---|---|---|---|
| Table rotation speed (r/min) | 0 to 24 (max.36) | |||
| Motor capacity (gear ratio) (kW) | 0.1 (1/100) | 0.2 (1/100) | 0.4 (1/100) | |
| Inverter capacity (kW) | 0.2 | 0.4 | 0.75 | |
| Maximum loading capacity (kg) | Less than 18r/min | 500 | 1500 | |
| More than 19r/min | 300 | 1000 | ||
| Maximum pallet size (mm) | □900 | □1000 | □1100 | |
| Coils stacking height (including pallet) (mm) | 500 | 600 | ||
| Material size (thickness×width) (mm) | 0.08 to 0.6t×10 to 50w | |||
| Interlock | Main machine operation stops when a fault occurs | |||
| Power consumption (kVA) | 0.5 | 0.6 | 0.8 | |
| Power source | Triple phase AC200V 50/60Hz | |||
*Please contact us for special specifications.
*For detailed specifications, please contact us separately.

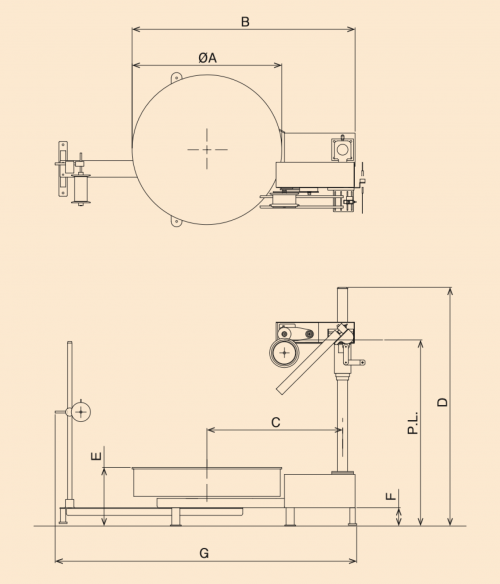

Dimensions
| Dimension/Model | TL-700 | TL-900 | TL-1100 |
|---|---|---|---|
| A(mm) | 700 | 900 | 1100 |
| B(mm) | 1150 | 1350 | 1550 |
| C(mm) | 715 | 815 | 915 |
| D(mm) | 1440 | ||
| E(mm) | 355 | ||
| F(mm) | 110 | ||
| G(mm) | 1780 | 1980 | 2180 |
| P.L.(mm) | 850 to 1250 | ||
